AYBEY ELEKTRONİK
AC Series Lift Control System
● ACT is only designed for electrical lifts.
● In conformity with EN81-1 standard.
● Simplex, duplex, triplex and up to 8 lifts group via CAN-Bus
● Attendant, Dependent mode
● Parallel, cabin serial, cabin + landings serial communication
● Internal 3-phase and thermistor monitoring circuits
● Machine room temperature monitoring by internal temperature sensor
● 5 programmable inputs onboard + 4 programmable inputs by adding
INP board
● 3 programmable outputs onboard + 4 programmable inputs by adding
OUT board
● Real Time Clock, position encoder, USB,RS232,Ethernet,GSM
Modem connection options by adding extra boards
According to European safety Standard EN-81-1 Call now for Lahore, Karachi and Islamabad +923345399970
We have with ERD/ARD/UPS and without .

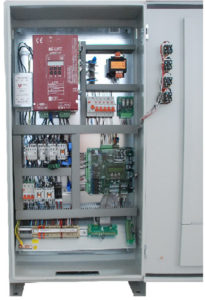

Aybey Fully Imported Turkish Controller for Elevators
ACT SOFTWARE FEATURES
● In conformity with EN81-1 standard.
● Up to 32 stops
● Simplex, duplex, triplex and up to 8-lift group via CAN-Bus
● Simple Push-Button, Simple Collective, One-way (up or down)
collective, full collective traffic systems
● In conformity with EN81-72 firefighter lifts standard
● Rescue functions are integrated into lift control software
● Detailed(code, date, time, position, state) error log for last 250 errors
● Computer access via the internet, local area network and USB
● Integrated Priority call system software
● Integrated Lift Access Security system software. In full-serial systems
centrally controlled time and/or floor dependent access restrictions
using security devices(i-Button, RFID) via CanBus communication.
Authorized for Aybey Elevator Controller. Just one call away +923345399970
